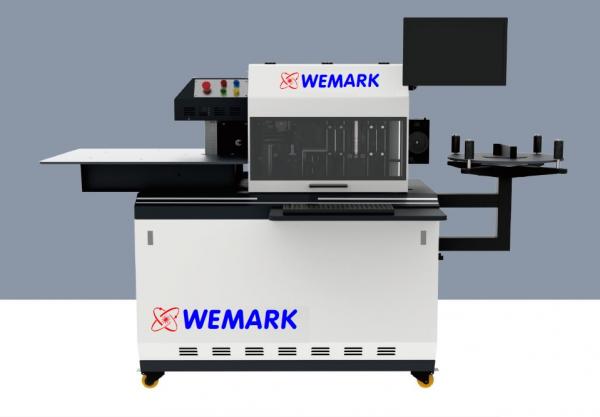

The W13 full function bending machine adopts a rolling continuous feeding device, which can be outstanding for different thickness materials and effectively eliminate the indentation in the feeding process. Detection system of encoder and software combination to detect feed precision in real time and ensure precision of +0.1mm.
Using double bending tools alternating bending system, the planer cutter is used for slotting, high strength and low loss, the profile uses a DC motor to drive the alloy knife to slotted. High-power servo driven and equipped with high quality ball screw and linear guide, make sure that the slotted is smooth and smooth. Improve production efficiency at the same time. It can handle all kinds of complex graphics easily. It is a fully functional type bending machine with all kinds of materials, such as aluminum profile, stainless steel, galvanized plate and so on.
Slotting Method | Planer cutter/ Alloy milling cutter slotting |
Bending Method | Double blade alternate bending system |
Package Size | 1330*740*1500mm |
Suitable Material | Roller circulation mode |
Suitable Material | Aluminum plate, Stainless steel, Galvanized plate, Super sign aluminum profile |
Material Height |
Aluminum plate, Stainless steel, Galvanized plate: 20-130mm Super sign aluminum profile: |
Material Thickness | 0.4~1.2mm |
Min.BendingAngle | R6 |
Control System | 4 axis control system (2axis servo control) |
File Format | Dxf.Plt.Ai |
Power | AC220V, 50Hz, 2.0Kw |
Machine Weight | 350Kg |
